1. Specification of Slats

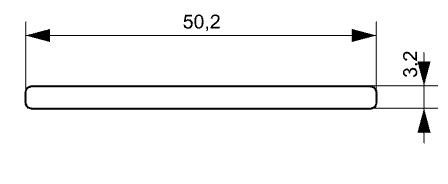

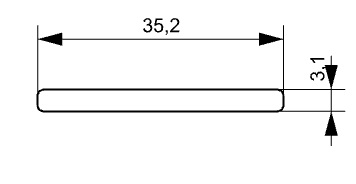

Cross-section shape
Width
50 mm ±0.6 mm
35 mm ±0.5 mm
25 mm ±0.5 mm
Thickness
3.0 mm + 0.3 mm
3.0 mm + 0.2 mm
3.0 mm + 0.2 mm
Weight
82~92 g/m
60~66 g/m
48~52 g/m
Packaging
100 pcs/box
140 pcs/box
120 pcs/box
Material
PS (Polystyrene)
Length
                   2.9 m/pc, 1.5 m/pc,  , 1.8 m/pc,   2.1 m/pc,   2.4 m/pc
Saw blade specification
              1. Diameter of the saw blade : 255mm ~ 300mm
              2.  Number of the saw blade : 96 ~ 120
              3. Cutting speed : 13~18 cm/s
              4.  R P M of saw  : 2,800 ~ 3,200 rpm
2.  BOTTOM BAR
    BT50
Weight    :  300~360 g/m
Packaging : 24 pcs/box
     BTR50
Weight    :  300~360 g/m
Packaging : 24 pcs/box
     BH50
Weight    :  300~360 g/m
Packaging : 24 pcs/box
     BH505
Weight    :  400~420 g/m
Packaging : 24 pcs/box
      BH35
Weight    :  330~350 g/m
Packaging :    pcs/box

Material
          PS (Polystyrene)
Length
                  2.9 m/pc, 1.5 m/pc,  , 1.8 m/pc,   2.1 m/pc,   2.4 m/pc
3.  VALANCE
   VW65
Weight    :  280~310 g/m
Packaging : 24 pcs/box
    VR65
Weight    :  280~310 g/m
Packaging : 24 pcs/box
     AZ63
Weight    :  230~220 g/m
Packaging :    30 pcs/box

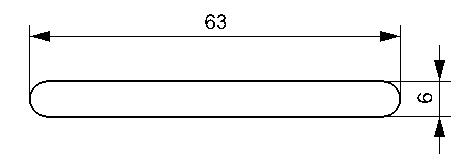

     VF63
Weight    :  200~210 g/m
Packaging :    36 pcs/box

     VW83
Weight    :  330~350 g/m
Packaging :  24 pcs/box

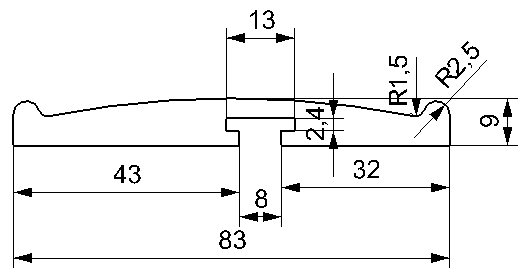

     VR83
Weight    :  330~350 g/m
Packaging :  24 pcs/box

Material
          PS (Polystyrene)
Length
                 2.9 m/pc, 1.5 m/pc,  , 1.8 m/pc,   2.1 m/pc,   2.4 m/pc
